ORTF mounting adapter for Sennheiser MKH8040 / Schoeps CMC1U+MK4

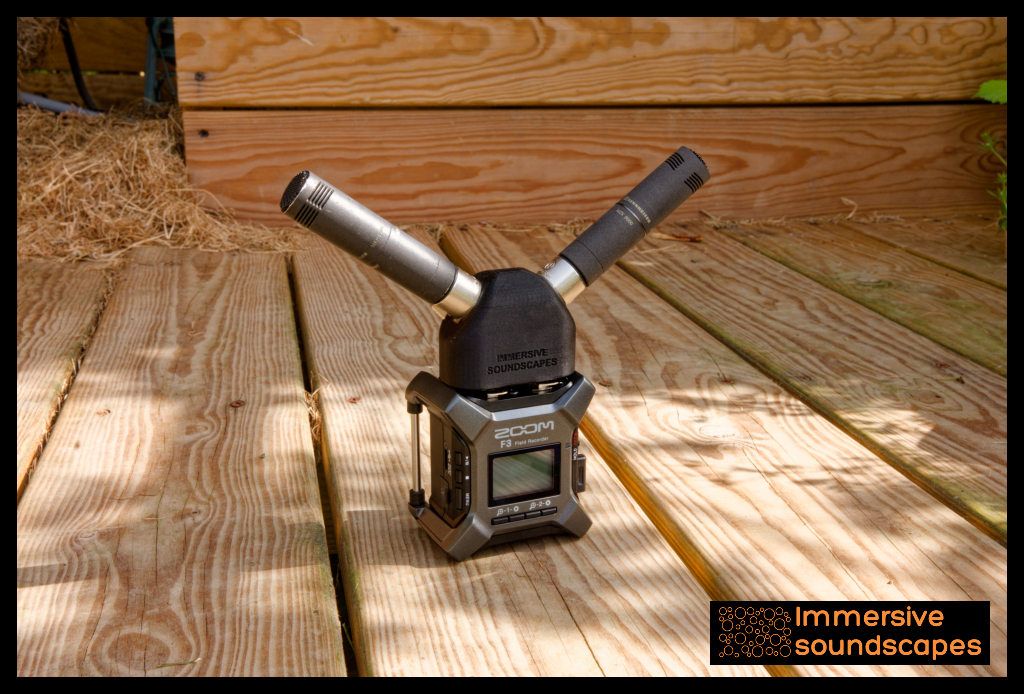

Turn your recorder into a top-tier handheld — in ORTF

Plug a Sennheiser MKH8040 or Schoeps CMC1U+MK4 straight onto your recorder in an ORTF array — no cables, no stereo bar. Record faster on location and save real space in your bag. It's also a superb adapter for cinema room tone.

Made from reinforced-carbon 3D printing and Neutrik connectors.

Geometry

• 110° angle
• Capsule spacing: 17 cm

Compatible with any 48V phantom microphone, though the ORTF spacing (nominally 17 cm) will vary with microphone length. ORTF specs are exact with Sennheiser (MKH8040) and Schoeps (CMC1U+MK4).

Recorder spacing (axis to axis)

• F3, F6, MixPre, PMD661: 23 mm
• Tascam FR-AV2: 31 mm
• Tascam DR-100: 38 mm
