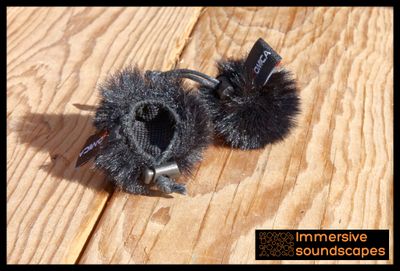

Earsight microphones are modular and include accessories such as special clips, windshields and 3D adapters. Here you’ll find all the accessories you can add as a spare to your order, or in case you lose them.
The world first ORTF plug & rec microphone
Handheld recorders share compacity and sound quality, making them a great tool for carrying a quality recorder in your pocket at all times.
The problem is that setting up the microphones with tripod, cables, orientation takes a lot of time. When you want to capture the action, or "the decisive moment" as in photography, you need to react quickly. I came up with the idea of designing a plug & rec microphone, so that the camera could be taken out quickly.
The idea came from a real need, and is now accessible to all.
ORTF specifications:
The microphone is available in different versions to fit different recorders, select your recorder as an option because distance between XLR connectors are different.
SHARED TECHNICAL DATAS
| CAPSULE TYPE | Electret Condenser paired stereo set |
| DIRECTIVITY | Cardioid |
| FREQUENCY RANGE | 20Hz to 20kHz |
| OPERATING TEMPERATURE | -25°C->+70°C |
| POWERING | 48V PHANTOM |
| CONNECTORS | NEUTRIK XLR (Black or silver depending on availability) |
| MATERIAL | 3D printed parts with Carbon fiber reinforcement material |
| RFI NOISE | Almost insensitive to RFI noise |
| QUALITY | Audiophile high grade audio capacitor, hand-crafted silver-based soldering, MADE IN FRANCE |
SMALL CAPSULE - TECHNICAL DATAS:
| SENSITIVITY | -37 dB |
| SELF NOISE | 22 dB-A |
| SIGNAL TO NOISE RATIO | 72 dB |
| MAXIMUM SPL INPUT | 110 dB |
| WINDSHIELDS |
|
LARGE CAPSULE - LESS SELF NOISE
| SENSITIVITY | -41 dB |
| SELF NOISE | 18 dB-A |
| SIGNAL TO NOISE RATIO | 76 dB |
| MAXIMUM SPL INPUT | 135 dB |
| WINDSHIELDS |
|
DISTANCE BETWEEN XLR
All recorders with same distance will be compatible (AXIS TO AXIS)
